D-100 desktop reader and writer is a small integrated reader used to identify tags and write data into tags in short distance especially in indoor conditions like warehouses, distribution centers and libraries, etc.
Features of D-100
|
1. Phychip PR9200 Inside:
|
|
2. Using the Highest Performance Components: ◆Using 50mmX50mm Microstrip ceramicsantenna. Operating tag without fade zone. ◆Using FT232 USB to serial chip. Providing the moststable communication in the industry. ◆All of components with the highest level and very lowtemperature drift coefficient, which can work in harsh environments. |
| 3. Excellent Performance of ReadingTags:
◆Read range is adjustable form 10cm to 3 m. ◆The highest writing tags successful rate in theindustry. ◆Multi-tag identification: ＞50pcs. ◆Read rate: ＞50pcs/s. |
|
4. More Interfaces: ◆Supports USB 2.0 Interface. ◆Supports Wiegand 26 interface. ◆Supports Wiegand 34 interface. ◆Supports USB powered. ◆Supports independent power supply. |
|
5. Low-Power: ◆No heat during long-term continuous full load working atroom temperature. ◆Continuous Current＜This email address is being protected from spambots. You need JavaScript enabled to view it.(26 dBm Output). ◆Continuous Current＜This email address is being protected from spambots. You need JavaScript enabled to view it.(18 dBm Output). |
|
6. Excellent Consistency: ◆A model of design consistency. ◆Every indicators are calibrated rigorously, ensureconsistency. |
|
7. Simple and efficientsoftware interface: ◆Communication interface is compatible with our INDYR2000 series. |
|
8. Supports two installationmethods: ◆Can be used as a Desktop Reader. ◆Can be wall-mounted, used as Access Control. |
|

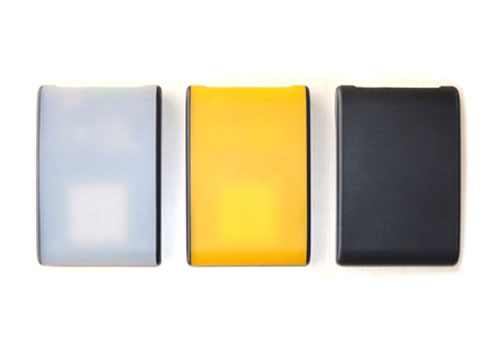

9. Color: ◆Light gray、Orange、Black. |
